ORIC 丨 3200H tape type, sheet metal can also be used! High speed maglev hybrid UV printer

The ORIC 3200H3.2-meter UV coiling machine, with its advantages of efficient production, material compatibility, high-precision output, and seamless printing of large sizes, has become an ideal choice for medium to large batch and multi material printing needs, especially suitable for industry users who need to balance flexible and hard material processing.

ORIC

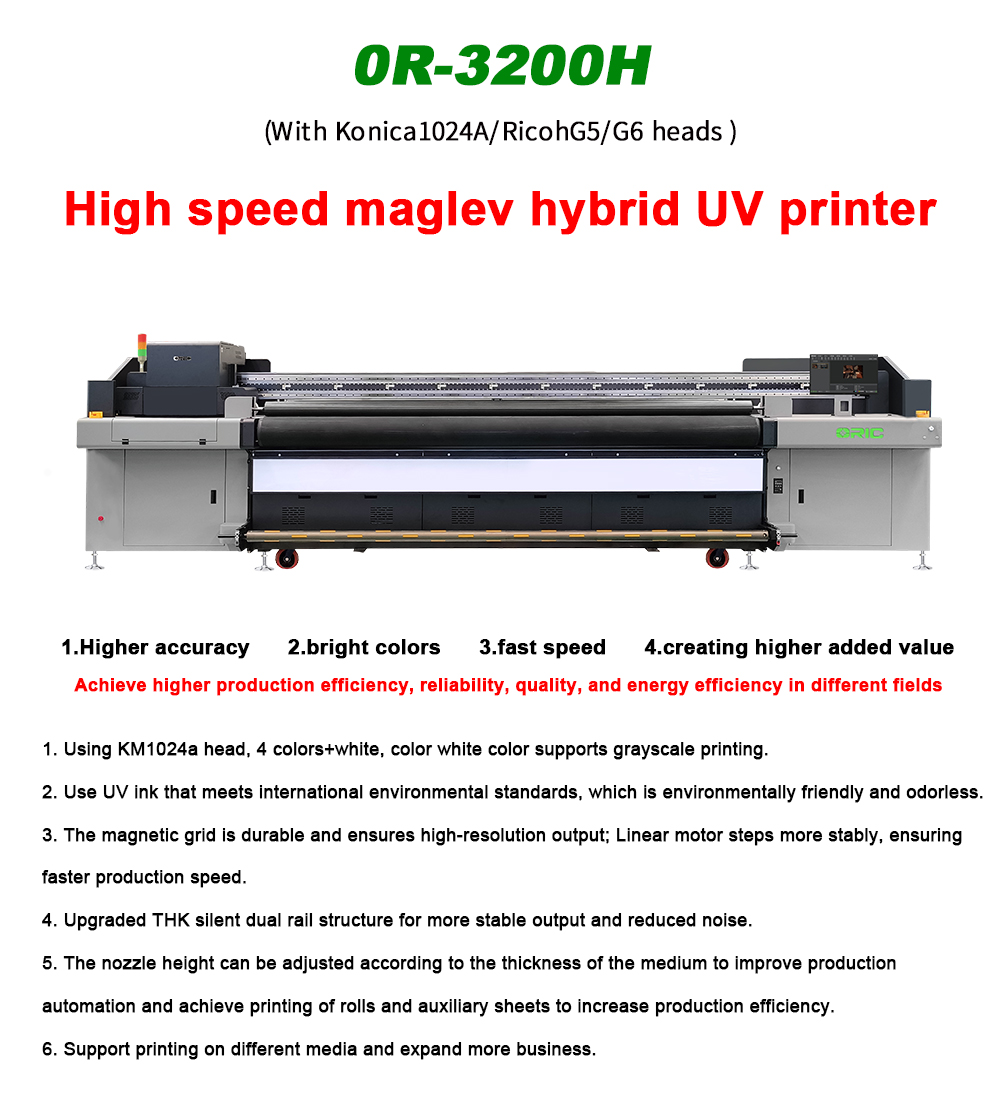

3200H(KM1024a)High speed maglev hybrid UV printer

Solution, technology, application, production capacity

Provides numerous choices for advertising and more inkjet industries

On site testing and printing of multiple materials using the 3200H plate rolling machine by the customer, showcasing the results! Application solutions for matching different color modes to meet customers' needs for different materials, green and environmentally friendly; The 3.2-meter large format application can be completely integrated with the storefront glass of large display cabinets in shopping malls, with a very natural overall effect and no need for splicing, providing convenient services for the installation of back-end programs!

This UV roll plate all-in-one machine is specifically designed for printing rolls and sheets. High step accuracy, good control system, and smooth material feeding. It ensures both accuracy and speed on soft materials and boards.

<Board printing>

The 3.2-meter UV roll plate integrated machine combines the dual functions of roll and sheet printing, and has significant advantages in advertising, decoration, industrial manufacturing, and other fields, especially in handling large-sized printing tasks. In board printing, use the Orica specific front and rear printing board dedicated external support platform, which is stable, convenient, and fast to produce!

Obvious advantages:

1. Efficient production and cost savings

Dual mode flexible switching: It can print rolls (such as soft film, lamp cloth, car stickers, super transparent, etc.) and process hard boards (such as acrylic, wooden board, metal board, KT board, PVC board, etc.), making it versatile and reducing equipment investment.

Continuous printing: The roll mode supports uninterrupted batch output, suitable for long frames (such as large advertisements and background walls), avoiding frequent material changes and improving efficiency. Automatic feeding, winding, and sheet positioning functions reduce manual intervention, saving time and labor costs.

2. High precision and high-quality output

UV printing instant curing ink, with bright colors, scratch resistance, and UV resistance, suitable for long-term indoor and outdoor use.

Adopting Konica 1024A nozzle (also available with G5/G6), it supports high precision and strong detail expression, meeting the needs of high-end advertising, art painting, and more. Use CMYK+white ink or spot color ink to cover a wider range of colors and achieve special effects (such as transparent media printing).

3. Wide material compatibility

Hard board: can print flat materials with a thickness of 1-30mm (such as PVC/KT board, etc.), suitable for signage, furniture decoration and other needs.

Flexible rolls: Soft film, canvas, velvet fabric, car stickers, PET and other rolls, suitable for exhibition posters, car stickers, decorative paintings, etc.

UV ink directly adheres to surfaces of various materials, reducing the need for pre-treatment steps.

4. Large seamless output

3.2 meter ultra wide: With a single printing width of up to 3.2 meters, large advertisements and other tasks can be completed without splicing, avoiding seam problems and improving overall aesthetics.

5. Environmental Protection and Durability

Low VOC emissions: UV ink does not contain volatile organic solvents, making it more environmentally friendly.

Instant drying: After curing, it can be stacked or installed immediately, shortening the delivery cycle.

Waterproof and fade resistant: The printed product has strong weather resistance and can be used outdoors for more than 3-5 years.

6. Diversified application scenarios

Advertising industry: large outdoor advertisements, display stands, light boxes.

Decoration industry: customized background walls, art paintings, flooring/furniture decoration.

Industrial field: instrument identification, building decorative panels, etc.

7. Intelligence and stability

Positioning system: Calibrate the board during printing to avoid misalignment.

Industrial grade structure: Stable and durable body design, suitable for long-term high load production.

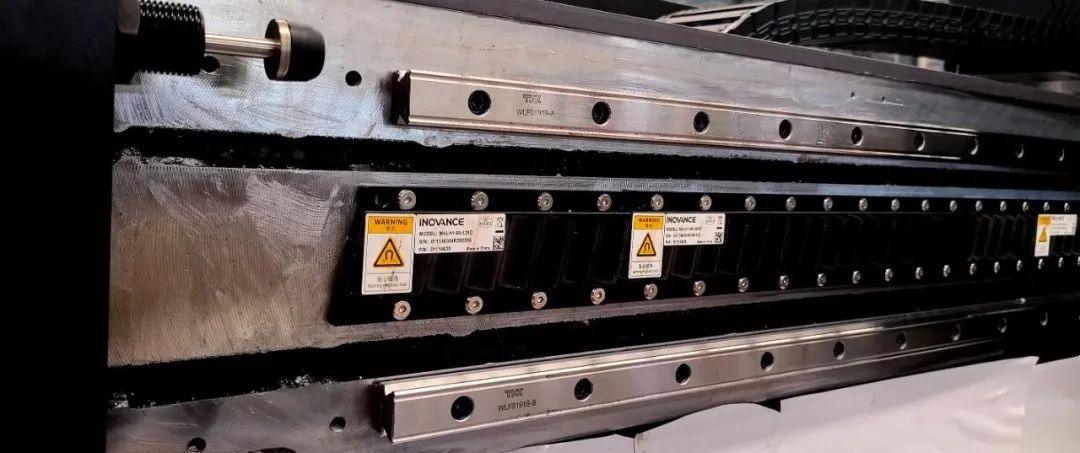

OR-3200H heavy-duty multifunctional plate rolling machine, with a brand new process design, comprehensive configuration, THK double silent guide rail, magnetic grid, linear motor, heavy-duty pressing roller! Make the printing process of soft film and multiple materials wrinkle free! 1. Configure a brand new Konica KM1024a nozzle that supports full-color and color white printing solutions! Grayscale printing; 2. Use UV ink that meets environmental standards and has a low odor; 3. The magnetic grid is durable and ensures high-resolution output, while the linear motor provides more stable stepping and faster production speed; 4.3.2 meters wide, supports printing on different media, expands more business; 5. Higher precision, vibrant colors, fast speed, creating higher added value; 6. Soft film velvet fabric 5 * 1024A-CMYK: 25 ㎡/h! The equipment configuration has been greatly upgraded in multiple aspects:

-Static conductive brush

Eliminate static electricity, improve printing quality, eliminate ink flying and fire hazards;

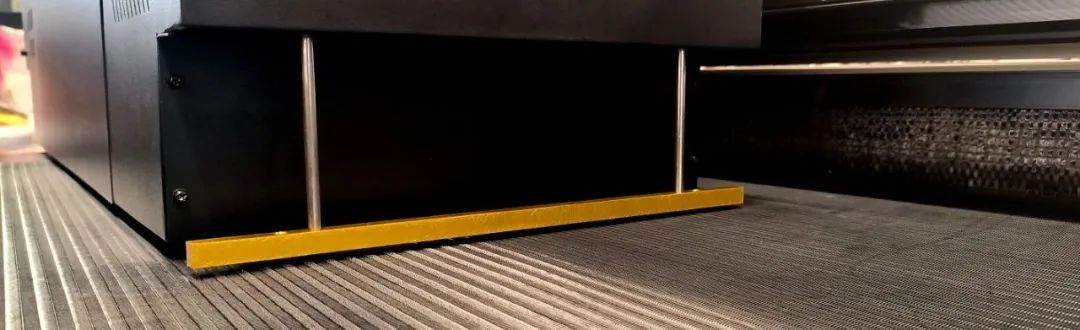

-Collision avoidance device

Adopting a bidirectional collision avoidance device to ensure that the printer stops abruptly when encountering surface objects during high-speed operation, effectively ensuring the service life of the print head;

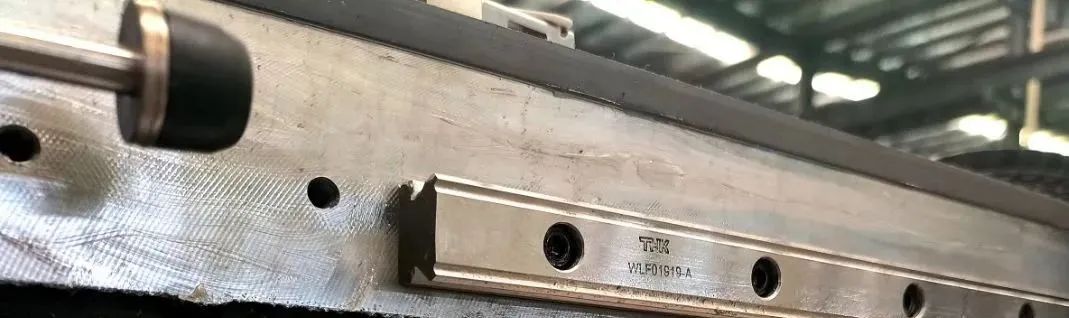

-THK high-precision silent dual rail

Effectively reducing work environment noise, improving the printing accuracy and smoothness of the car;

-High quality magnetic grid

Fast speed, high precision, strong stability, and higher cost-effectiveness!

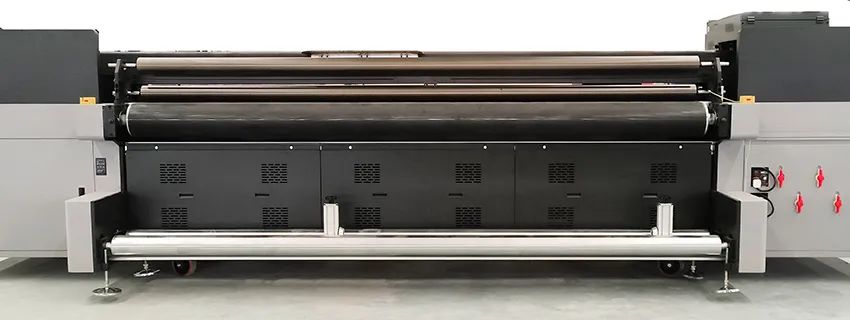

-Rear double roller feeding and unloading material

Heavy material storage and retrieval, making material printing and retrieval smoother

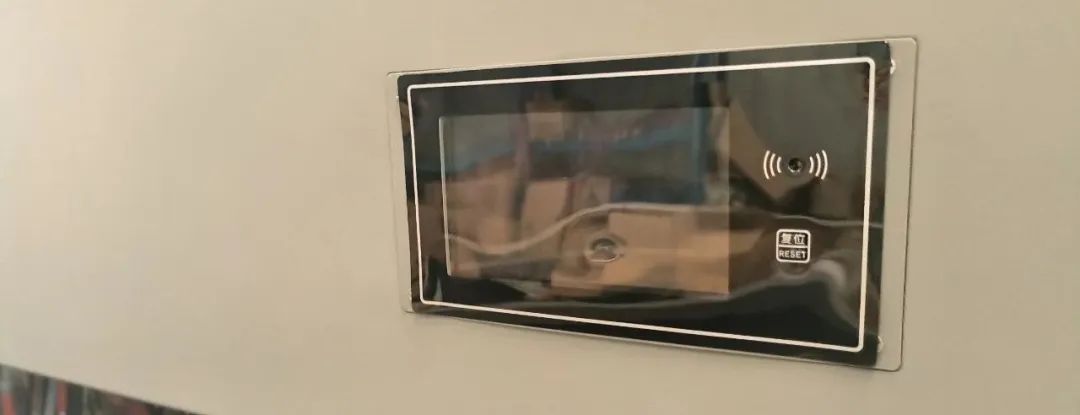

-Intelligent ink volume display alarm unit

Large ink tank, automatic ink shortage alarm and digital display, timely reminder to add ink

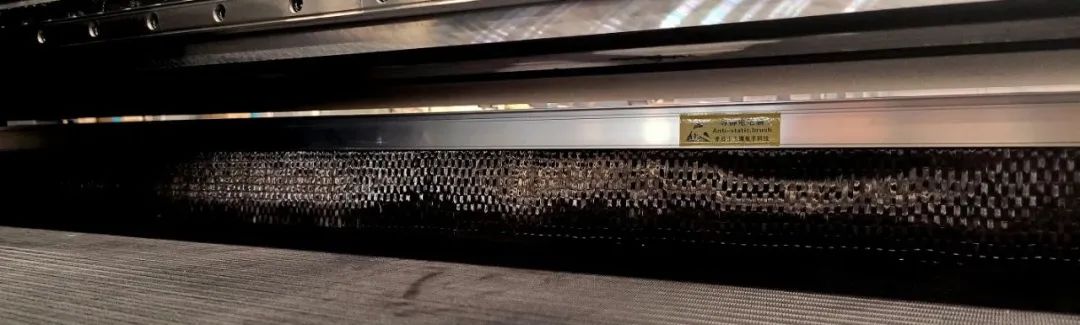

-Heavy duty pressure roller+high-strength conveyor belt device

Specialized high-strength and low stretch tape guide combined with heavy-duty pressure roller, ensuring that the soft material and board do not deviate or deform during the output process, resulting in a long service life

Widely used:

Roll material: Soft film, knife scraping cloth, 3P cloth, lamp film, canvas, transparent film, car sticker, single transparent, label sticker, PET&PVC, various types of cardboard, gold and silver paper, leather, non-woven fabric, wallpaper, wall cloth, etc;

Board materials: operation panel, polyethylene packaging box, PVC board, KT board, snowflake board, glass, ceramic tiles and other advertising decoration materials.

OR-3200H(KM1024ax10)CMYK-6pass：40 ㎡/h 8pass：20  ㎡/h

OR-3200H(KM1024ax10)CWC-6pass：20  ㎡/h 8pass：10 ㎡/h

----------------------------------

For more product information, follow the website：

www.oric-systems.com/www.oric-systems.cn

Adhering to the principle that details determine quality, Orica has been helping customers create greater wealth value with excellent equipment, good reputation, and comprehensive products and services for many years, and has received praise and recognition from numerous domestic and foreign users. Today, as the printing industry continues to make breakthroughs, Orica will undoubtedly forge ahead with good equipment quality and excellent service attitude, promoting the printing industry towards a greener, more energy-efficient, and more futuristic direction.
