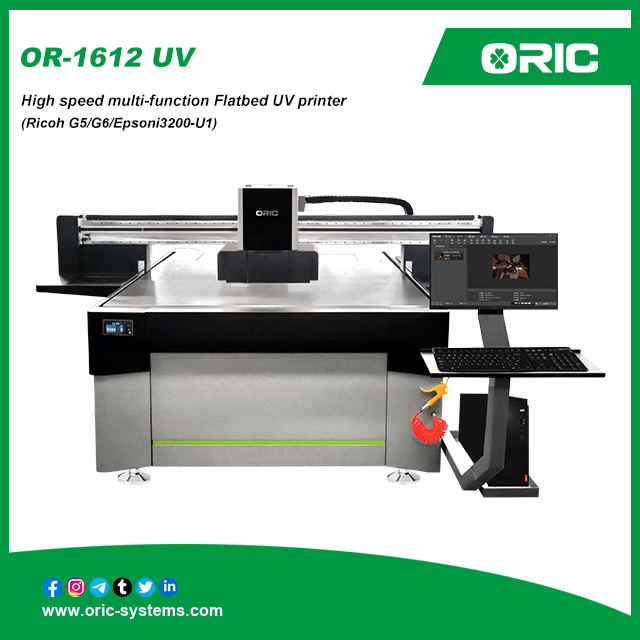

OR-1612 UV High speed multi-function Flatbed UV printer Y-axis dual screw drive / Accurate ink volume and iquid level display / Horizontal printing width 1600mm / Printing height ≤15cm

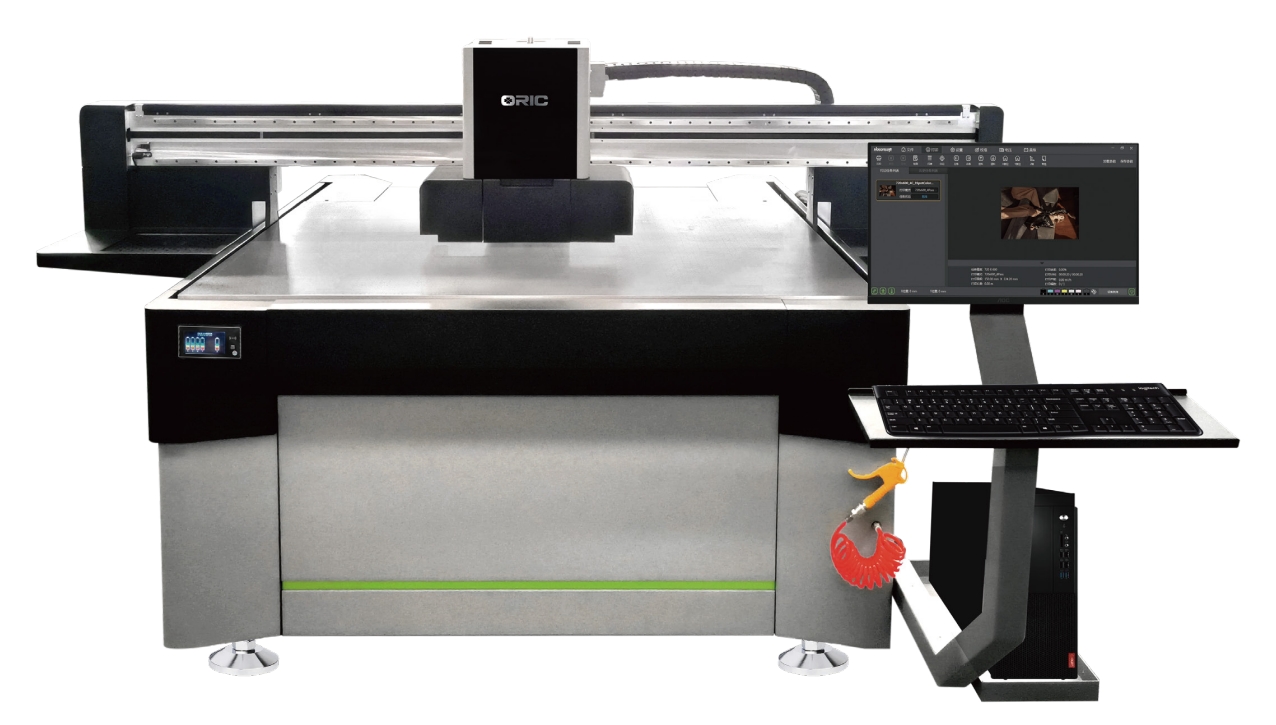

OR-1612UV(Ricoh G5/G6/Epsoni3200-U1)High speed multi-function Flatbed UV printer

Y-axis dual screw drive / Accurate ink volume and liquid level display / Horizontal printing width 1600mm / Printing height ≤15cm

Y-axis dual screw drive / Accurate ink volume and liquid level display /

 Horizontal printing width 1600mm / Printing height≤15cm

• Y-direction double screw transmission ensures higher output accuracy and working stability;

• The appearance of metal baking paint has high mechanical strength and stable operation;

• Large gantry miling frame, precision miling of X and Y axes to improve equipment printing accuracy;

• Adopting Ricoh G5/G6/Epsoni3200 head configuration to improve printing speed and accuracy;

• Compared to traditional printing, UV flatbed printing does not require plate making or color

• matching, greatly reducing manpower and material resources, and supporting small batch and multi batch printing;

Ricoh G6 has higher production capacity and faster printing speed. Adopting a new variable inkdroplet technology to achieve three-level dot changing, it can provide 5PL ink dot size and easilyachieve perfect image quality even at high speed or low resolution, reducing the graininess ofimage quality and outputting high image quality with high precision!

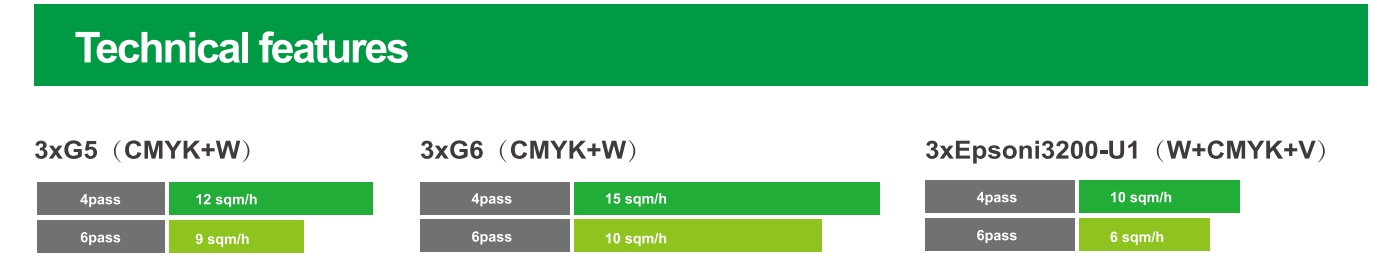

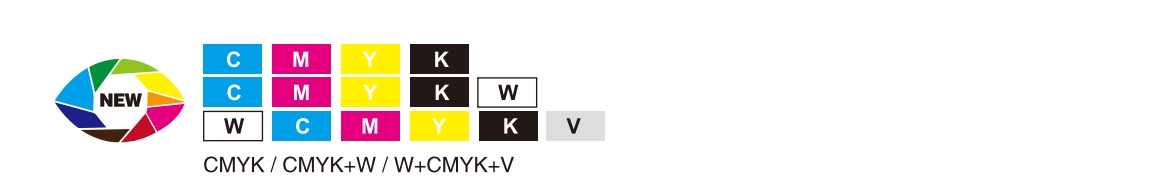

2-4 head configuration supports multiple printing modes:CMYK/CMYK+W/W+CMYK+V

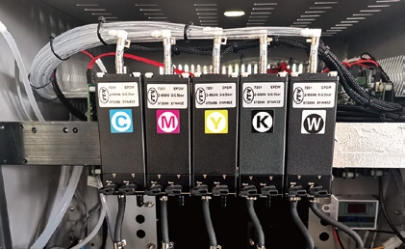

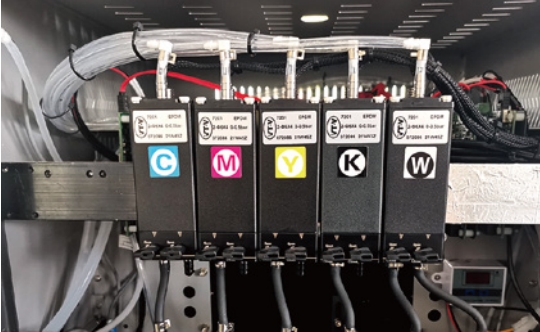

The OR-1612 flatbed printer car is equipped with multiple heads installation slots on the floor (supporting≤4 headsconfigurations), enabling multiple combination printing modes and multiple printing processes: And it has extremelhigh precision while meeting customer production requirements.

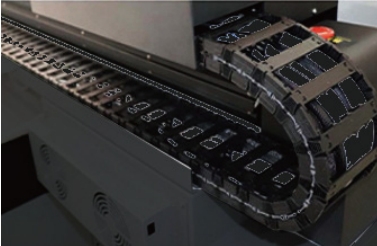

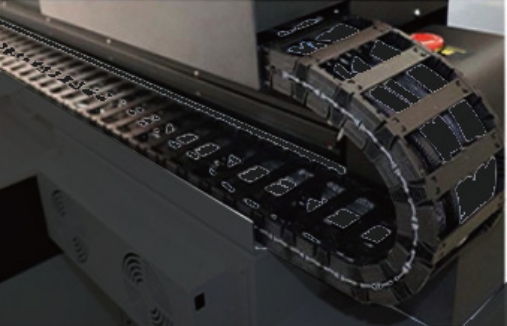

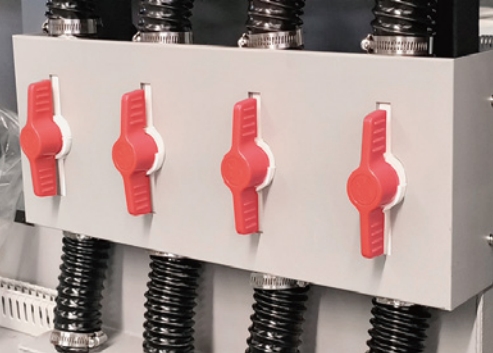

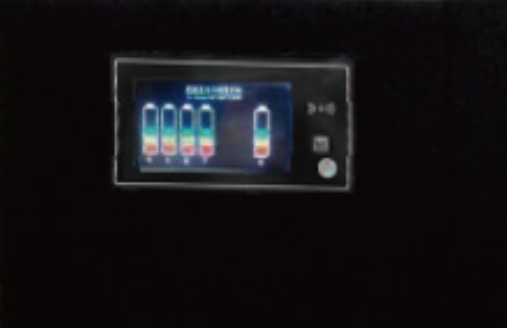

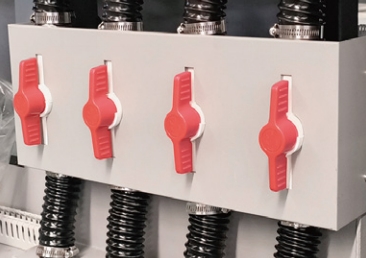

Using a negative pressure ink supply unit, theink flows more smoothly during operation andthe heads lasts longer	High resilience brand drag chain, with regularrouting, provides better printing support for themovement of the front of the car	Intelligent ink display alarm unitLarge inkbucket, automatic inkshortage alarm anddigital display,timely reminder to add ink.

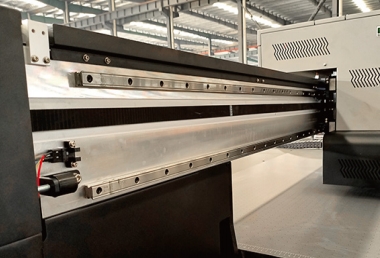

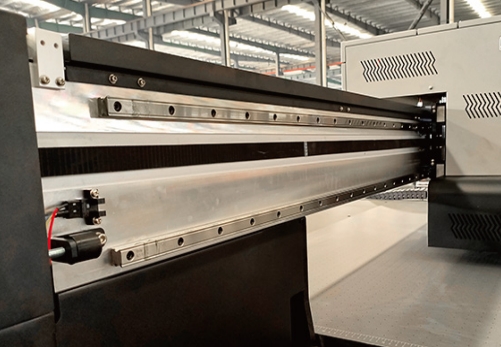

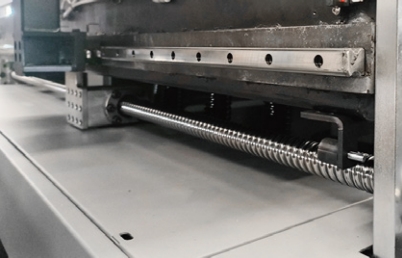

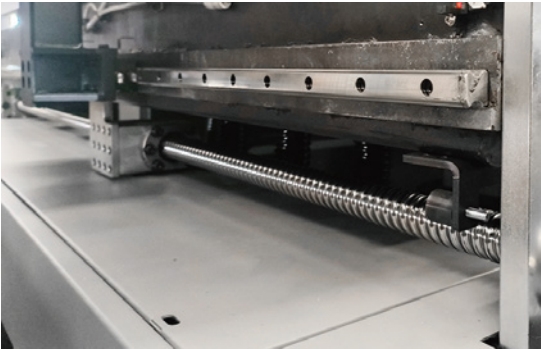

Double screw transmission improves inkaccuracy, is resistant to grinding, has highprecision, and has stable performance	high quality THK silent dual rail, stableprinting process, reduces noise	Partition adjustable suction platformcontrol provides strong stability for itemprinting, ensuring accurate positioning andprinting of items

It is widely used, such as glass, metal, ceramic tile, acrylic acid, plexiglass, wood, plastic, aluminum, cardboard, foam board, composite boardplywood, PVC, MDF, WPC, ABS, PP board, etc; Sheet materials: fabric, canvas, leather, vinyl, paper, etc
