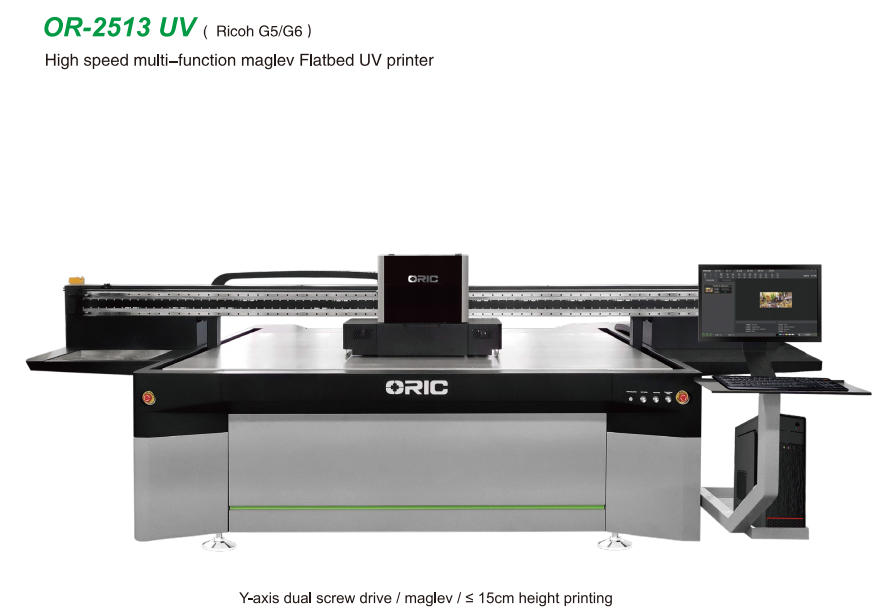

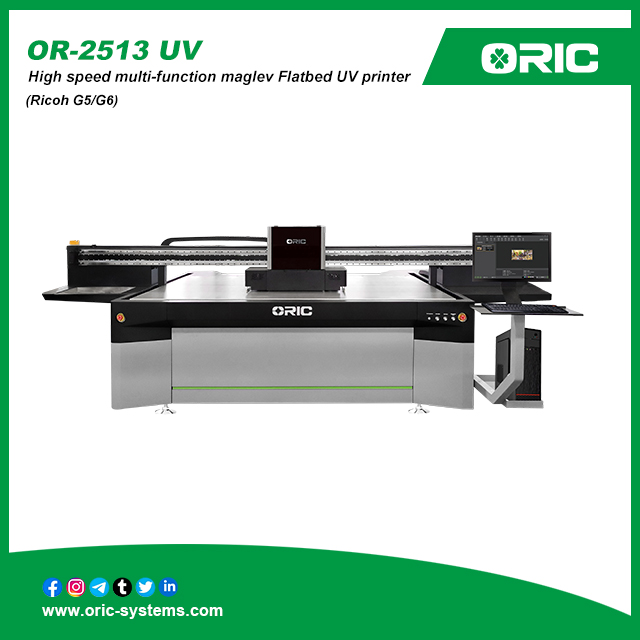

nanjing ORIC OR-2513 UV（Ricoh G5/G6) High speed multi-function maglev Flatbed UV printer

Maglev/white color simultaneous output/high accuracy/widely used

• Y-direction double screw transmission ensures higher output accuracy and working stability;

• The appearance of metal baking paint has high mechanical strength and stable operation;

• Large gantry milling frame, precision milling of X and Y axes to improve equipment printing accuracy;

• Adopting Ricoh G5/G6 head configuration to improve printing speed and accuracy;

• Compared to traditional printing, UV flatbed printing does not require plate making or color matching, greatly reducing manpower and material resources, and supporting small batch and multi batch printing;

Ricoh G6 has higher production capacity and faster printing speed. Adopting a new variable ink droplet technology to achieve three-level dot changing, it can provide 5PL ink dot size and easily achieve perfect image quality even at high speed or low resolution, reducing the graininess of image quality and outputting high image quality with high precision!

3-16 head configuration supports multiple printing modes:

CMYK / CMYK+W / CMYK+W+CMYK / CMYK+W+V / CMYK+Lc+Lm+W

The OR-2513 flatbed printer car is equipped with multiple heads installation slots on the floor (supporting 3-16 configurations), enabling multiple combination printing modes and multiple printing processes; And it has extremely high precision while meeting customer production requirements.

Using a negative pressure ink supply unit, the ink flows more smoothly during operation and the heads lasts longer	Partition adjustable suction platform control provides strong stability for item printing, ensuring accurate positioning and printing of items	High resilience brand drag chain, with regularrouting, provides better printing support for the movement of the front of the car
Automatic height measurement system, precise positioning, high-quality printing	Double screw transmission improves ink accuracy, is resistant to grinding, has high precision, and has stable performance	maglev can carry higher motion speeds, higher precision, lower sound, and faster operating speeds.high quality THK silent dual rail, stable printing process, reduces noise

It is widely used, such as glass, metal, ceramic tile, acrylic acid, plexiglass, wood, plastic, aluminum, cardboard, foam board, composite board,plywood, PVC, MDF, WPC, ABS, PP board, etc; Sheet materials: fabric, canvas, leather, vinyl, paper, etc
